Hyperplanes, distances, and margins
Introduction
A linear classifier separates observations by a flat boundary. In two variables the boundary is a line; in three variables it is a plane; and in \(p\) variables it is a hyperplane. Support vector machines use such a boundary, then choose the separating boundary that leaves the largest possible gap between the two classes. The gap is called the margin.
The calculation rests on one fact from Euclidean geometry: the shortest route from a point to a hyperplane follows the vector perpendicular to that hyperplane. This note establishes that fact in coordinates. It then distinguishes an algebraic quantity, the functional margin, from the geometric distance that an SVM maximizes. The optimization problem used to choose the boundary is considered separately.
A hyperplane and its two sides
Let an observation be a column vector \(x\in\mathbb{R}^p\). Let \(w\in\mathbb{R}^p\) be nonzero and let \(b\in\mathbb{R}\) be a scalar. The set
\[ \mathcal H=\{z\in\mathbb{R}^p:w^\top z+b=0\} \]
is an affine hyperplane. The letter \(z\) is used for a generic point on the boundary, reserving \(x\) for the observation whose location is to be assessed. The product \(w^\top z\) is a scalar: \(w^\top\) has dimensions \(1\times p\) and \(z\) has dimensions \(p\times1\). Adding the scalar \(b\) is therefore well defined.
The vector \(w\) is normal, or perpendicular, to \(\mathcal H\). To see this, take any two points \(z_1,z_2\in\mathcal H\). They both satisfy \(w^\top z_j+b=0\), so subtracting their two equations gives
\[ w^\top(z_1-z_2)=0. \]
The difference \(z_1-z_2\) runs along the hyperplane. Its zero inner product with \(w\) shows that every such direction is perpendicular to \(w\). In two dimensions, this says that the line \(w^\top z+b=0\) has normal vector \(w\). Figure Figure 1 gives a two-dimensional example.
A vector records a direction and a length, not a location: \(w=(1,2)^\top\) means one unit along the first coordinate and two along the second, measured from whichever point the arrow is drawn. The figure places it at \((1,1)^\top\) on \(\mathcal H\), but the same arrow drawn from the origin or from any other point is the same vector, and because \(\mathcal H\) is flat it is perpendicular to the line at every point. The vector \(w\) therefore fixes only the orientation of \(\mathcal H\), whereas the intercept \(b\) fixes its position: varying \(b\) produces a family of parallel lines that share the normal \(w\). Here \(b=-3\), so \(\mathcal H\) lies at distance \(|b|/\lVert w\rVert_2=3/\sqrt5\approx1.34\) from the origin, and \(w\) drawn from the origin would meet it at \(-bw/\lVert w\rVert_2^2=(0.6,1.2)^\top\).
The boundary divides the space into two open half-spaces:
\[ w^\top x+b>0 \qquad\text{and}\qquad w^\top x+b<0. \]
The sign determines the side. The intercept \(b\) shifts the boundary away from the origin. When \(b=0\), the boundary passes through the origin and is a linear subspace. When \(b\ne0\), it is affine rather than linear: it remains flat, but no longer contains zero.
The terms linear and affine here have their algebraic meanings.1
Distance from a point to the boundary
For a point \(x\in\mathbb{R}^p\), let \(q\) be its closest point on \(\mathcal H\). The displacement from \(q\) to \(x\) must be perpendicular to the hyperplane, so it must be a multiple of the normal vector. Write
\[ q=x-tw \]
for an unknown scalar \(t\). This expression starts at \(x\) and moves along the normal direction. The sign of \(t\) chooses which of the two directions along that line is used.
Because \(q\) lies on the hyperplane, it satisfies its defining equation. Substitution gives
\[ \begin{aligned} 0 &=w^\top q+b\\ &=w^\top(x-tw)+b\\ &=w^\top x-tw^\top w+b. \end{aligned} \]
The second line substitutes \(q=x-tw\). The last line distributes \(w^\top\) and uses the fact that \(t\) is a scalar. Since \(w\ne0\), \(w^\top w=\lVert w\rVert_2^2>0\), and the equation can be solved for \(t\):
\[ t=\frac{w^\top x+b}{\lVert w\rVert_2^2}. \]
The distance is the length of the displacement \(x-q=tw\), not the value of \(t\) itself. Using homogeneity of the Euclidean norm gives
\[ \begin{aligned} \operatorname{dist}(x,\mathcal H) &=\lVert x-q\rVert_2\\ &=\lVert tw\rVert_2\\ &=|t|\lVert w\rVert_2\\ &=\frac{|w^\top x+b|}{\lVert w\rVert_2}. \end{aligned} \]
This explains the division by \(\lVert w\rVert_2\). The numerator measures position in the arbitrary units of the normal vector \(w\). Multiplying by the length of \(w\) turns the normal-coordinate \(t\) into a Euclidean length, and one factor of \(\lVert w\rVert_2\) remains in the denominator. The signed version retains the side of the boundary:
\[ d_{\mathcal H}(x)=\frac{w^\top x+b}{\lVert w\rVert_2}. \]
It is positive on the side towards which \(w\) points, negative on the other side, and zero precisely on \(\mathcal H\).
The same boundary has many equations
For any positive scalar \(c\), the pairs \((w,b)\) and \((cw,cb)\) describe exactly the same hyperplane, because
\[ cw^\top z+cb=c(w^\top z+b)=0 \quad\Longleftrightarrow\quad w^\top z+b=0. \]
They also assign every point to the same half-space. However, the numerator \(w^\top x+b\) becomes \(c(w^\top x+b)\). It is therefore not a distance. The denominator in \(d_{\mathcal H}(x)\) changes by exactly the same positive factor:
\[ \frac{(cw)^\top x+cb}{\lVert cw\rVert_2} =\frac{c(w^\top x+b)}{c\lVert w\rVert_2} =d_{\mathcal H}(x). \]
Geometric distance is consequently determined by the boundary, whereas the unnormalized score \(w^\top x+b\), which scales with \(c\), is not. A negative rescaling describes the same boundary too, but reverses which side is called positive. Classifiers can adopt either orientation provided their class labels are reversed at the same time.
Functional and geometric margins
Suppose a training sample contains \((x_i,y_i)\) for \(i=1,\ldots,n\), where \(x_i\in\mathbb{R}^p\) and \(y_i\in\{-1,+1\}\). A linear classifier with boundary \(\mathcal H\) assigns observation \(i\) the predicted label \(\hat y_i=\operatorname{sign}(w^\top x_i+b)\): \(+1\) on the side towards which \(w\) points and \(-1\) on the other side. Multiplying the score \(w^\top x_i+b\) by the observed label yields the functional margin of observation \(i\):
\[ \widetilde\gamma_i=y_i(w^\top x_i+b). \]
This is positive when the observation is on the correctly labelled side of the boundary. For example, when \(y_i=+1\), positivity requires \(w^\top x_i+b>0\). When \(y_i=-1\), positivity requires \(w^\top x_i+b<0\), because multiplication by \(-1\) reverses the sign. The functional margin is negative for a misclassified observation and zero for an observation on the boundary.
The geometric margin divides the functional margin by the normal length:
\[ \gamma_i=\frac{y_i(w^\top x_i+b)}{\lVert w\rVert_2}. \]
Since \(y_i\) is either \(-1\) or \(+1\), its absolute value is one. Thus \(\gamma_i\) is the signed distance from \(x_i\) to the boundary, made positive when the classification is correct. Unlike \(\widetilde\gamma_i\), it does not change if \((w,b)\) is multiplied by a positive constant.
A sample is linearly separable when there are \(w\ne0\) and \(b\) such that
\[ y_i(w^\top x_i+b)>0 \qquad\text{for every }i. \]
In that case every observation is correctly classified and no observation lies on the separating hyperplane. The margin of a given separating boundary is the smallest geometric margin in the sample,
\[ \gamma=\min_{1\leq i\leq n} \frac{y_i(w^\top x_i+b)}{\lVert w\rVert_2}. \]
The minimum matters because the closest observations limit how far the boundary can be moved without reaching one of the classes.

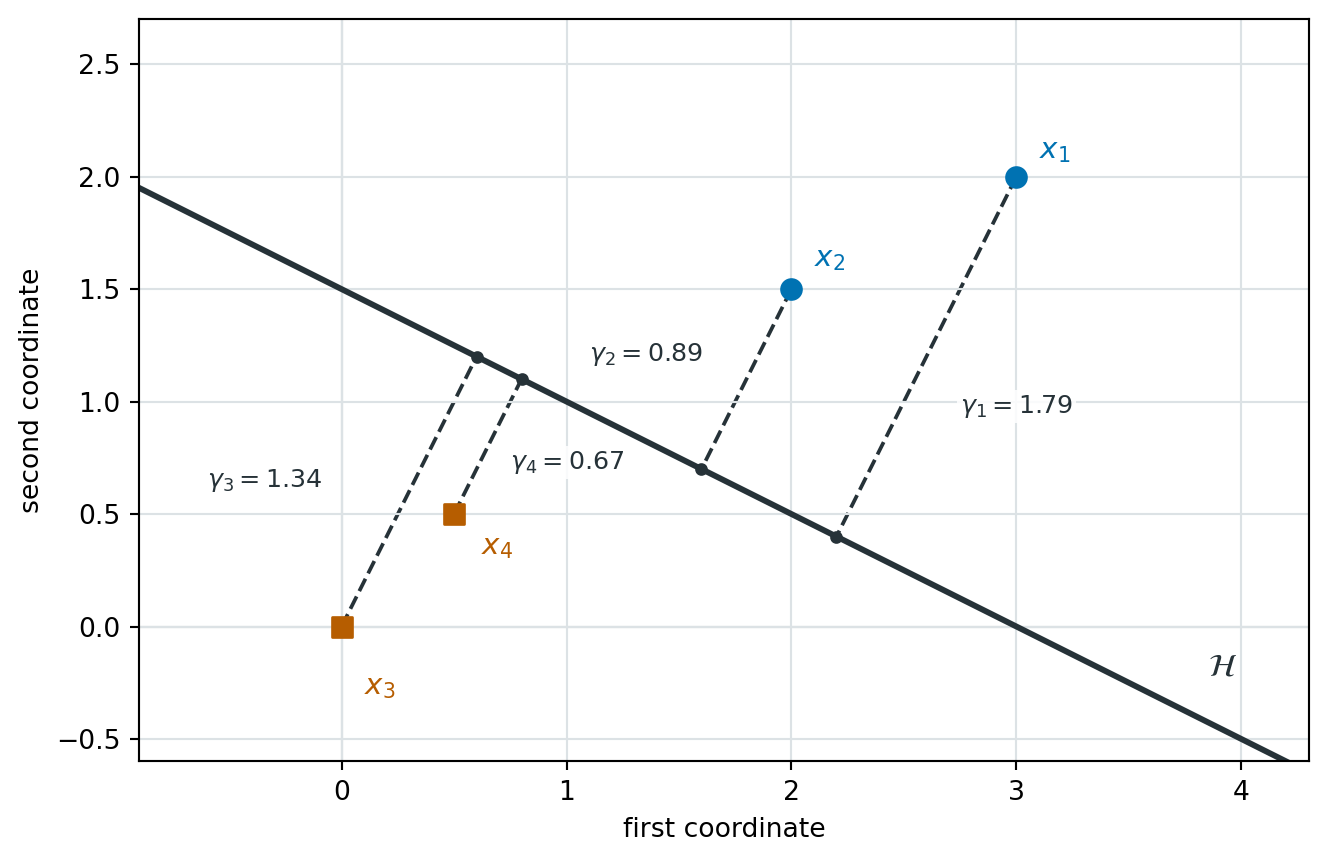

As a numerical example, retain the boundary of Figure Figure 1, with \(w=(1,2)^\top\), \(b=-3\), and \(\lVert w\rVert_2=\sqrt5\approx2.236\). Consider four labelled observations: \(x_1=(3,2)^\top\) and \(x_2=(2,1.5)^\top\) with \(y_i=+1\), and \(x_3=(0,0)^\top\) and \(x_4=(0.5,0.5)^\top\) with \(y_i=-1\). Their scores \(w^\top x_i+b\) are \(4\), \(2\), \(-3\), and \(-1.5\). Multiplying by the labels gives the functional margins, and dividing those by \(\sqrt5\) gives the geometric margins:
| Observation | \(x_i\) | \(y_i\) | \(w^\top x_i+b\) | \(\widetilde\gamma_i\) | \(\gamma_i\) |
|---|---|---|---|---|---|
| 1 | \((3,2)^\top\) | \(+1\) | \(4\) | \(4\) | \(1.79\) |
| 2 | \((2,1.5)^\top\) | \(+1\) | \(2\) | \(2\) | \(0.89\) |
| 3 | \((0,0)^\top\) | \(-1\) | \(-3\) | \(3\) | \(1.34\) |
| 4 | \((0.5,0.5)^\top\) | \(-1\) | \(-1.5\) | \(1.5\) | \(0.67\) |
All four functional margins are positive, so this boundary separates the sample, and its margin is \(\gamma=\min_i\gamma_i=1.5/\sqrt5\approx0.67\), attained by \(x_4\). Rescaling the equation to \((2w,2b)=((2,4)^\top,-6)\) leaves the line unchanged but doubles every functional margin, to \(8\), \(4\), \(6\), and \(3\). The geometric margins remain \(1.79\), \(0.89\), \(1.34\), and \(0.67\), because \(\lVert 2w\rVert_2=2\sqrt5\) doubles as well. Figure Figure 2 shows the four distances.
Canonical scaling and support vectors
The rescaling ambiguity can be removed by choosing a convenient normalization. For any separating \((w,b)\), meaning one that classifies every observation correctly so that all functional margins are positive, rescale the pair so that the smallest functional margin equals one:
\[ \min_i y_i(w^\top x_i+b)=1. \]
Under this canonical scaling, every observation satisfies
\[ y_i(w^\top x_i+b)\geq1. \]
The observations closest to this particular boundary satisfy equality, \(y_i(w^\top x_i+b)=1\). Their functional margin is therefore one, whereas their score \(w^\top x_i+b\) equals their label: an observation with \(y_i=+1\) has score \(+1\), and an observation with \(y_i=-1\) has score \(-1\), since \(-(w^\top x_i+b)=1\) requires \(w^\top x_i+b=-1\). The value \(-1\) is thus a score on the correct side of the boundary for the negative class, not a negative functional margin. In terms of scores, these observations lie on one of two parallel hyperplanes,
\[ w^\top x+b=1 \qquad\text{or}\qquad w^\top x+b=-1, \]
according to their label.
A separable sample admits many separating boundaries, and each has its own margin \(\gamma\). The maximum-margin boundary is the separating hyperplane whose margin is largest, that is, the solution of
\[ \max_{w\ne0,\,b}\;\min_{1\leq i\leq n}\frac{y_i(w^\top x_i+b)}{\lVert w\rVert_2}. \]
Canonical scaling does not restrict this problem. It fixes the smallest functional margin, which is the numerator of the objective, whereas the objective itself is the smallest geometric margin, the numerator divided by \(\lVert w\rVert_2\). Because the objective is unchanged when \((w,b)\) is multiplied by a positive constant, each candidate hyperplane can be represented by its canonical equation without altering the value it attains. For a canonically scaled pair, the numerator’s minimum equals one, so the inner minimum equals \(1/\lVert w\rVert_2\), and the problem becomes
\[ \max_{w,\,b}\;\frac{1}{\lVert w\rVert_2} \qquad\text{subject to}\qquad y_i(w^\top x_i+b)\geq1\quad\text{for every }i. \]
Replacing the equality \(\min_i y_i(w^\top x_i+b)=1\) by these inequalities loses nothing. If every inequality were strict at a solution, dividing \((w,b)\) by the smallest functional margin would shorten \(w\) and raise the objective. Canonical scaling therefore gives every separating boundary the same smallest functional margin, one, while their geometric margins still differ through \(\lVert w\rVert_2\). The boundary with the shortest canonical normal vector has the largest margin.
The solution is a unique hyperplane, and its equation is unique once canonical scaling is imposed. For this boundary, the observations satisfying equality are the support vectors. Both supporting hyperplanes contain at least one of them: if only one class attained equality, shifting the boundary slightly towards the other class would increase the smallest geometric margin, which contradicts optimality. The support vectors therefore pin down the widest separating gap from both sides, and moving either supporting hyperplane inward would meet a support vector first.
With this normalization, the distance from the decision boundary \(w^\top x+b=0\) to either supporting hyperplane is \(1/\lVert w\rVert_2\). This follows directly from the distance formula, since changing the right-hand-side score from \(0\) to \(1\) changes the numerator by one. The total width between the two supporting hyperplanes is therefore
\[ \frac{2}{\lVert w\rVert_2}. \]
Maximizing the margin is consequently equivalent, after imposing the canonical constraints, to minimizing \(\lVert w\rVert_2\) or the equivalent objective \(\tfrac12\lVert w\rVert_2^2\). This converts a geometric aim into the constrained optimization problem used by the hard-margin support vector machine. The remaining step is to solve that problem and to extend it when perfect separation is unavailable.

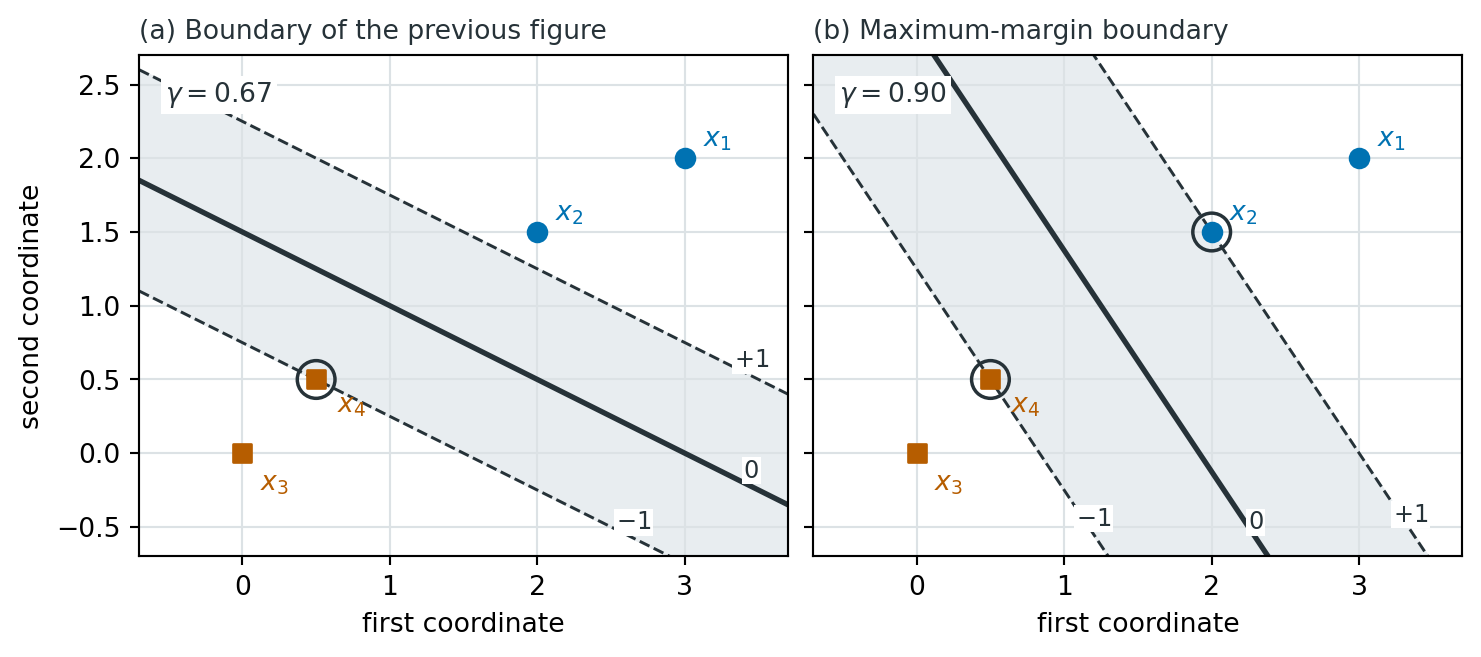

The four observations of Figure Figure 2 illustrate both boundaries. The boundary with \(w=(1,2)^\top\) and \(b=-3\) separates the sample, and its smallest functional margin is \(1.5\), attained by \(x_4\). Dividing by \(1.5\) gives the canonical equation with \(w=(2/3,4/3)^\top\) and \(b=-2\). The scores become \(8/3\), \(4/3\), \(-2\), and \(-1\), so \(x_4\) lies on the hyperplane \(w^\top x+b=-1\) and the margin is \(1/\lVert w\rVert_2=1.5/\sqrt5\approx0.67\), as computed before.
Solving the maximum-margin problem for the same sample gives, in canonical scaling,
\[ w^*=\left(\tfrac{12}{13},\tfrac{8}{13}\right)^\top, \qquad b^*=-\tfrac{23}{13}. \]
The scores of the four observations are \(29/13\approx2.23\), \(1\), \(-23/13\approx-1.77\), and \(-1\). Observations 2 and 4 attain equality and are the support vectors, one on each supporting hyperplane; observations 1 and 3 have functional margins above one and play no role in fixing the boundary. The normal \(w^*\) is proportional to \(x_2-x_4=(1.5,1)^\top\), and the boundary passes through the midpoint \((1.25,1)^\top\) of the two support vectors, so it is their perpendicular bisector. Since \(\lVert w^*\rVert_2=4/\sqrt{13}\approx1.11\), the margin is \(\sqrt{13}/4\approx0.90\) and the width between the supporting hyperplanes is \(\sqrt{13}/2\approx1.80\), which equals the distance between \(x_2\) and \(x_4\). Relative to the first boundary, the margin rises from \(0.67\) to \(0.90\), and the canonical \(\lVert w\rVert_2\) falls correspondingly from \(1.49\) to \(1.11\). Figure Figure 3 compares the two boundaries.
Conclusion
An affine hyperplane is determined by its normal vector and intercept, but its equation has an arbitrary scale. Dividing the signed score by \(\lVert w\rVert_2\) removes that arbitrariness and yields signed Euclidean distance. Under canonical scaling, the closest correctly classified observations have functional margin one, the two supporting hyperplanes are \(2/\lVert w\rVert_2\) apart, and maximizing their separation becomes minimization of \(\tfrac12\lVert w\rVert_2^2\) subject to classification constraints. Those closest observations are the support vectors that determine the boundary.
Footnotes
Here, linear has its algebraic meaning. A map \(f\) is linear when \(f(c x+d y)=c f(x)+d f(y)\) for every pair of vectors \(x,y\) and scalars \(c,d\); in particular, it satisfies \(f(cx)=cf(x)\). Thus \(x\mapsto w^\top x\) is linear. Adding a nonzero intercept gives the affine map \(x\mapsto w^\top x+b\): generally, \(f(cx)=cw^\top x+b\ne c(w^\top x+b)=cf(x)\). In one dimension, the same distinction is between the linear map \(x\mapsto ax\) and the affine, non-linear map \(g(x)=ax+b\) when \(b\ne0\).↩︎
